Parameterizing workflows is a critical part of orchestration. It allows you to create contracts between modular workflows in your organization and empower less-technical users to interact with your workflows intuitively.

Pydantic is a powerful library for data validation using Python type annotations, which is used by Prefect to build a parameter schema for your workflow.

This allows you to:

  • check runtime parameter values against the schema (from the UI or the SDK)
  • build a user-friendly form in the Prefect UI
  • easily reuse parameter types in similar workflows

In this tutorial, we’ll craft a workflow signature that the Prefect UI will render as a self-documenting form.

​
Motivation

Let’s say you have a workflow that triggers a marketing email blast which looks like:

@flow
def send_marketing_email(
    mailing_lists: list[str],
    subject: str,
    body: str,
    test_mode: bool = False,
    attachments: list[str] | None = None
):
    """
    Send a marketing email blast to the given lists.

    Args:
        mailing_lists: A list of lists to email.
        subject: The subject of the email.
        body: The body of the email.
        test_mode: Whether to send a test email.
        attachments: A list of attachments to include in the email.
    """
    ...

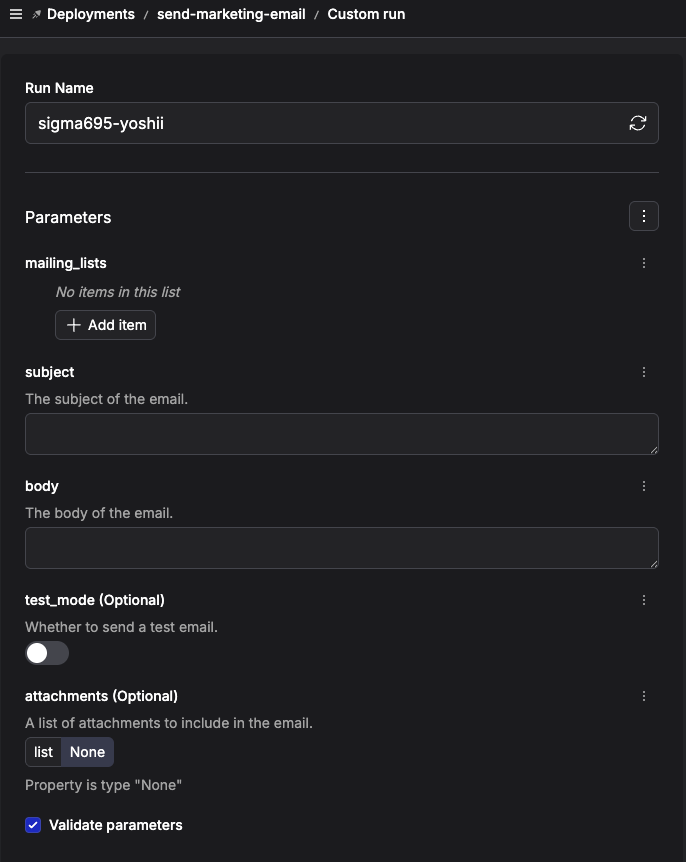

When you deploy this flow, Prefect will automatically inspect your function signature and generate a form for you:

initial form

This is good enough for many cases, but consider these additional constraints that could arise from business needs or tech stack restrictions:

  • there are only a few valid values for mailing_lists
  • the subject must not exceed 30 characters
  • no more than 5 attachments are allowed

You can simply check these constraints in the body of your flow function:

@flow
def send_marketing_email(...):
    if len(subject) > 30:
        raise ValueError("Subject must be less than 30 characters")
    if mailing_lists not in ["newsletter", "customers", "beta-testers"]:
        raise ValueError("Invalid list to email")
    if len(attachments) > 5:
        raise ValueError("Too many attachments")

    # etc...

but there are several downsides to this:

  • you have to spin up the infrastructure associated with your flow in order to check the constraints, which is wasteful if it turns out that bad parameters were provided
  • this might get duplicative, especially if you have similarly constrained parameters for different workflows

To improve on this, we will use pydantic to build a convenient, self-documenting, and reusable flow signature that the Prefect UI can build a better form from.

​
Building a convenient flow signature

Let’s address the constraints on mailing_lists, subject, and attachments.

​
Using Literal to restrict valid values

there are only a few valid values for mailing_lists

Say our valid mailing lists are: ["newsletter", "customers", "beta-testers"]

We can define a Literal to specify the valid values for the mailing_lists parameter.

from typing import Literal

MailingList = Literal["newsletter", "customers", "beta-testers"]

You can use an Enum to achieve the same effect.

from enum import Enum

class MailingList(Enum):
    NEWSLETTER = "newsletter"
    CUSTOMERS = "customers"
    BETA_TESTERS = "beta-testers"

​
Using a BaseModel subclass to group and constrain parameters

Both the subject and attachments parameters have constraints that we want to enforce.

the subject must not exceed 30 characters

the attachments must not exceed 5 items

Additionally, the subject, body, and attachments parameters are all related to the same thing: the content of the email.

We can define a BaseModel subclass to group these parameters together and apply these constraints.

from pydantic import BaseModel, Field

class EmailContent(BaseModel):
    subject: str = Field(max_length=30)
    body: str = Field(default=...)
    attachments: list[str] = Field(default_factory=list, max_length=5)

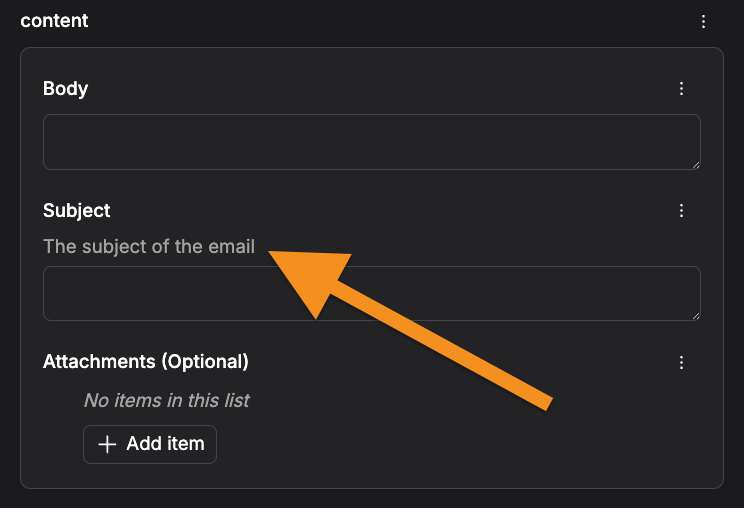

pydantic.Field accepts a description kwarg that is displayed in the form above the field input.

subject: str = Field(description="The subject of the email", max_length=30)

field description

Similarly, you can:

  • pass title to Field to override the field name in the form
  • define a docstring for EmailContent to add a description to this group of parameters in the form

​
Rewriting the flow signature

Now that we have defined the MailingList and EmailContent types, we can use them in our flow signature:

@flow
def send_marketing_email(
    mailing_lists: list[MailingList],
    content: EmailContent,
    test_mode: bool = False,
):
    ...

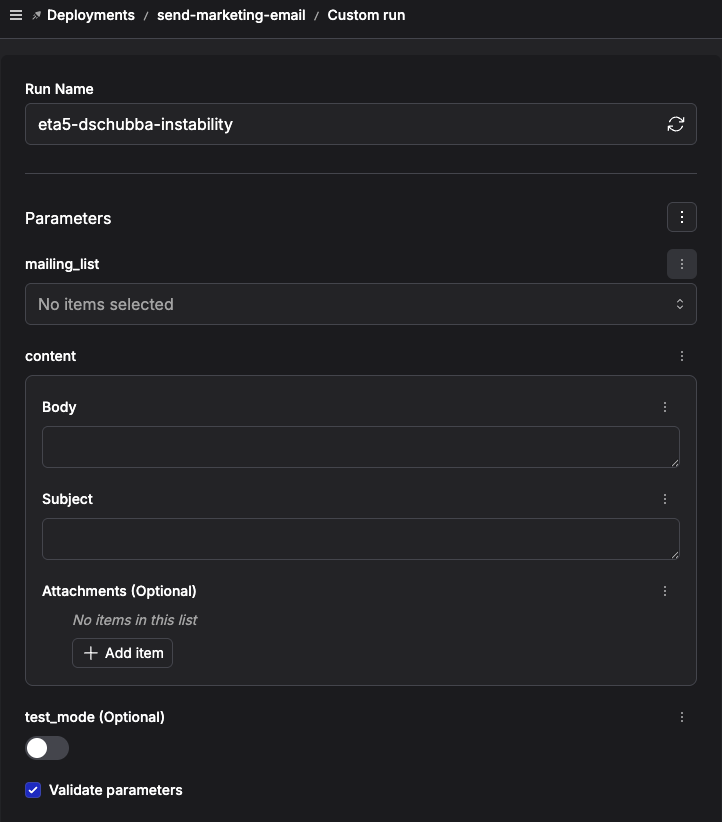

The resulting form looks like this:

improved form

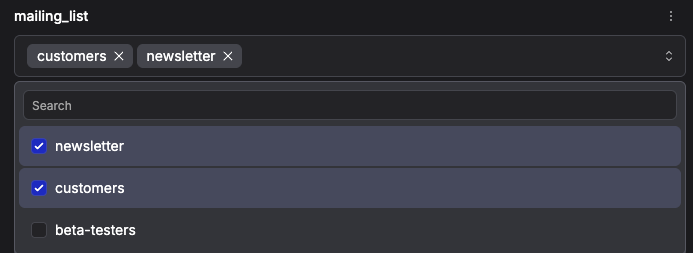

where the mailing_lists parameter renders as a multi-select dropdown that only allows the Literal values from our MailingList type.

multi-select

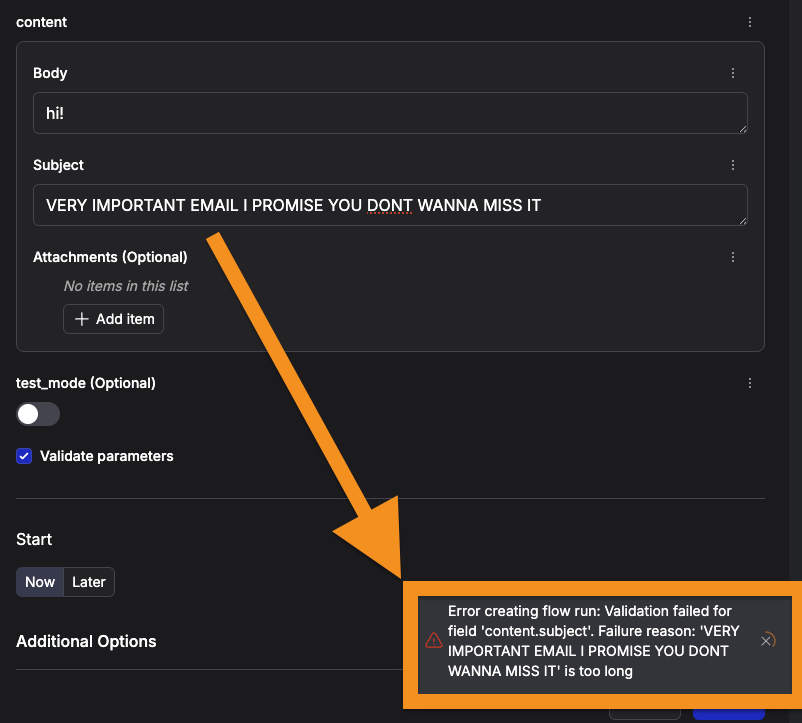

and any constraints you’ve defined on the EmailContent fields will be enforced before the run is submitted.

early validation failure toast

​
Using json_schema_extra to order fields in the form

By default, your flow parameters are rendered in the order defined by your @flow function signature.

Within a given BaseModel subclass, parameters are rendered in the following order:

  • parameters with a default value are rendered first, alphabetically
  • parameters without a default value are rendered next, alphabetically

You can control the order of the parameters within a BaseModel subclass by passing json_schema_extra to the Field constructor with a position key.

Taking our EmailContent model from the previous example, let’s enforce that subject should be displayed first, then body, then attachments.

class EmailContent(BaseModel):
    subject: str = Field(
        max_length=30,
        description="The subject of the email",
        json_schema_extra=dict(position=0),
    )
    body: str = Field(default=..., json_schema_extra=dict(position=1))
    attachments: list[str] = Field(
        default_factory=list,
        max_length=5,
        json_schema_extra=dict(position=2),
    )

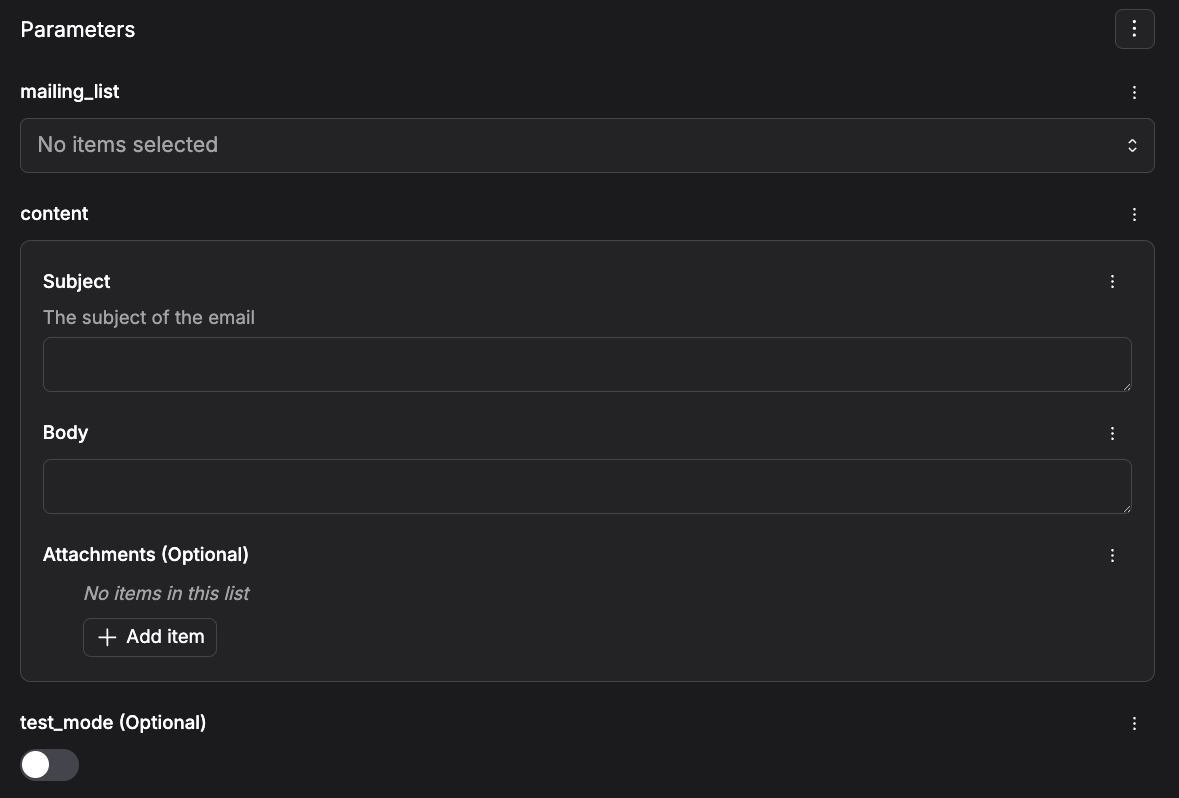

The resulting form looks like this:

custom form layout

​
Recap

We have now embedded the constraints on our parameters in the types that describe our flow signature, which means:

  • the UI can enforce these constraints before the run is submitted - less wasted infra cycles
  • workflow inputs are self-documenting, both in the UI and in the code defining your workflow
  • the types used in this signature can be easily reused for other similar workflows

As you craft a schema for your flow signature, you may want to inspect the raw OpenAPI schema that pydantic generates, as it is what the Prefect UI uses to build the form.

Call model_json_schema() on your BaseModel subclass to inspect the raw schema.

from rich import print as pprint
from pydantic import BaseModel, Field

class EmailContent(BaseModel):
    subject: str = Field(max_length=30)
    body: str = Field(default=...)
    attachments: list[str] = Field(default_factory=list, max_length=5)

pprint(EmailContent.model_json_schema())

{
    'properties': {
        'subject': {'maxLength': 30, 'title': 'Subject', 'type': 'string'},
        'body': {'title': 'Body', 'type': 'string'},
        'attachments': {'items': {'type': 'string'}, 'maxItems': 5, 'title': 'Attachments', 'type': 'array'}
    },
    'required': ['subject', 'body'],
    'title': 'EmailContent',
    'type': 'object'
}

For more on constrained types and validation features available in pydantic, see their documentation on models and types.
